🏥 Multi-Agent Healthcare Assistant (POC)

⚠️ EDUCATIONAL DEMONSTRATION ONLY
This is a proof-of-concept system for academic/portfolio purposes. It is NOT for clinical use. Always consult qualified healthcare professionals for medical advice.

---

📋 Overview

An AI-powered multi-agent system that demonstrates clinical triage, OTC medication recommendations, and e-pharmacy integration for respiratory conditions. Built with modular agents that collaborate to provide safe, intelligent healthcare assistance.

Key Features:

• 🔍 Chest X-ray analysis (mock classifier)
• 💊 OTC medicine recommendations with safety checks
• 🏥 Pharmacy matching with delivery ETA
• 👨‍⚕️ Doctor escalation for severe cases
• 🔒 PII/PHI protection (masked data, anonymized files)
• 📊 Full observability (timeline, agent logs, JSON outputs)

---

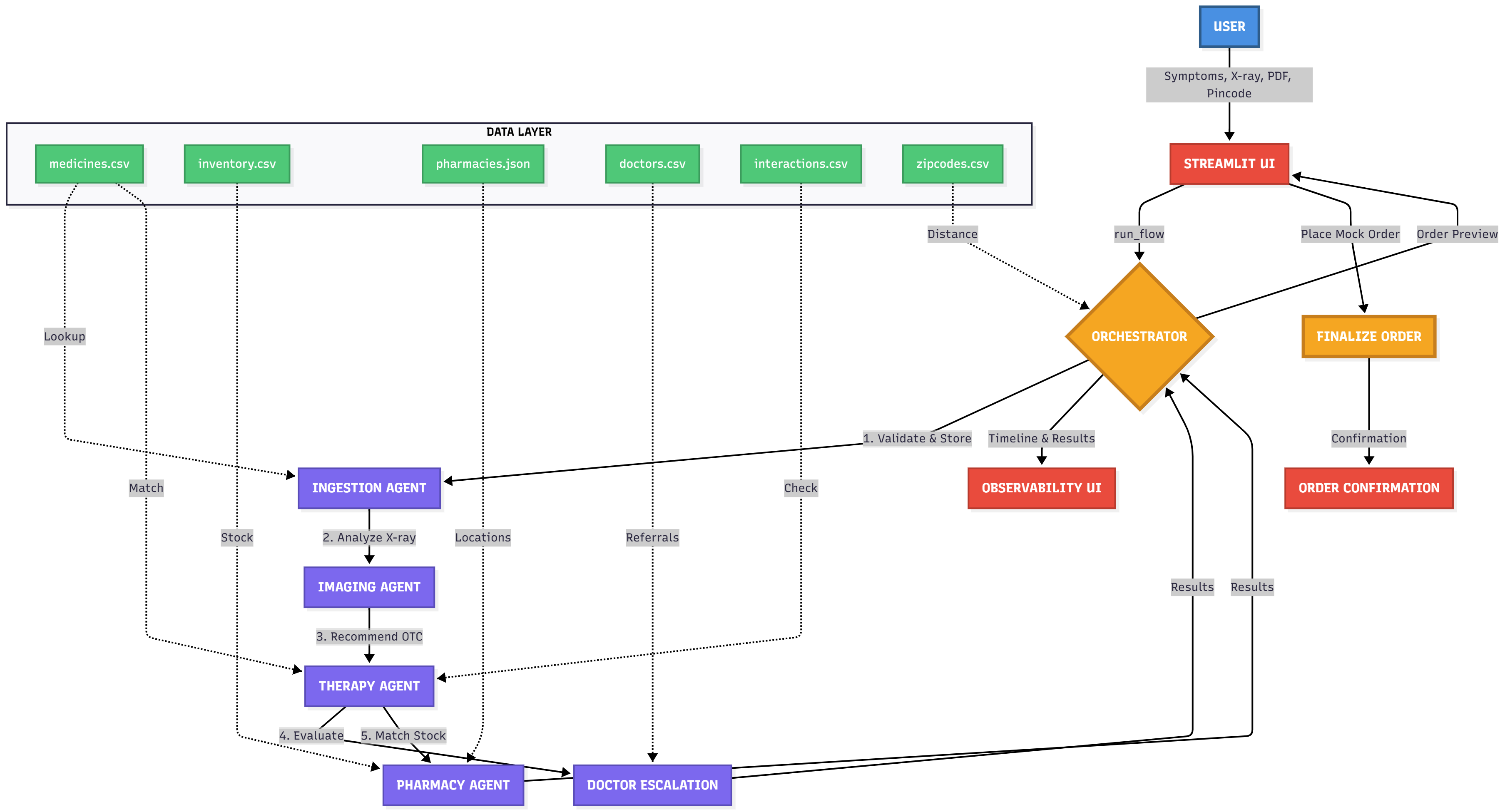

🏗️ System Architecture

Core Agents

Agent	Responsibility	Key Outputs
🗂️ Ingestion	File validation, PII masking, mock OCR	{patient: {age, allergies}, xray_path, notes, pdf_text}
🔬 Imaging	X-ray classification, severity detection	{condition_probs: {pneumonia, normal, covid}, severity_hint}
💊 Therapy	OTC recommendations, interaction screening	{otc_options: [{sku, dose, freq}], red_flags: [...]}
🚨 Doctor Escalation	Triage logic, consultation routing	{doctor_escalation_needed: bool, escalation_suggestions: [...]}
🏥 Pharmacy Match	Stock + geo matching, ETA calculation	{pharmacy_id, items, eta_min, delivery_fee}
🎯 Orchestrator	Flow coordination, timeline tracking	Consolidated results + order preview

Data Flow

User Input → Ingestion → Imaging → Therapy → Doctor Escalation
                                         ↓
                                   Pharmacy Match → Order Preview

Each agent handoff is validated through integration tests (see tests/integration/).

---

🚀 Quick Start

Prerequisites

• Python 3.10+
• pip or uv package manager

Installation

# Clone the repository
git clone <your-repo-url>
cd Multi_AI_Agent_Medical_Assistant

# Install dependencies (includes dev tools for testing)
pip install -e .[dev]

# Run the application
streamlit run app.py

The app will launch at http://localhost:8501 🎉

Alternative: Using uv (faster)

uv pip install -e .[dev]
streamlit run app.py

---

📁 Project Structure

Multi_AI_Agent_Medical_Assistant/
├── Agents/                      # Core agent implementations
│   ├── ingestion.py             # File validation, PII masking
│   ├── imaging.py               # X-ray analysis (mock classifier)
│   ├── therapy.py               # OTC recommendation engine
│   ├── pharmacy_match.py        # Geo + inventory matching
│   ├── doctor_escalation.py     # Triage & consultation routing
│   └── coordinator.py           # Orchestrator (flow control)
├── Data/                        # Mock data sources (CSV/JSON)
│   ├── medicines.csv            # OTC formulary (age limits, contraindications)
│   ├── interactions.csv         # Drug interaction matrix
│   ├── pharmacies.json          # Partner pharmacy locations
│   ├── inventory.csv            # Stock levels per pharmacy
│   ├── doctors.csv              # Mock tele-consult roster
│   └── zipcodes.csv             # Pincode → lat/lon mapping
├── Utils/                       # Helper utilities
│   ├── data_loader.py           # CSV/JSON loaders
│   ├── logger.py                # Structured logging
│   ├── lookups.py               # SKU/pharmacy name mappings
│   └── constants.py             # Global config
├── tests/                       # Unit & integration tests
│   ├── unit/                    # Agent-level tests
│   └── integration/             # Handoff validation tests
├── Docs/                        # Documentation & diagrams
├── Testcases/                   # Sample X-rays, PDFs, screenshots
├── app.py                       # Streamlit UI
├── sample_order.json            # Sample order payload
├── test_sample_order.py         # Order validation script
└── README.md                    # This file

---

🎯 Sample Workflow

User Journey

1. Patient Input

   • Enter demographics (name, age, phone, allergies, gender)
   • Describe symptoms in free text
   • Upload chest X-ray (PNG/JPG) - optional
   • Upload PDF report - optional
   • Provide pincode for pharmacy matching

2. System Processing

   Ingestion Agent
     ↓ (validates, masks PII, extracts text)
   Imaging Agent
     ↓ (analyzes X-ray → condition probabilities + severity)
   Therapy Agent
     ↓ (matches symptoms → OTC options, checks age/allergy/interactions)
   Doctor Escalation Agent
     ↓ (evaluates red flags → escalate if severe)
   Pharmacy Match Agent
     ↓ (finds nearest stock → calculates ETA & delivery fee)


3. Output

   • Customer Summary Tab: Diagnosis, medicines, safety warnings, pharmacy details, doctor suggestions
   • Observability Tab: Timeline, agent JSON outputs, order confirmation logs

4. Order Placement (Mock)

   • User clicks "Place mock order"
   • System generates order_id, placed_at timestamp, total_cost
   • Confirmation displayed in human-readable format + JSON log

Example Order

See sample_order.json for a complete example. Test it with:

python test_sample_order.py

Expected output:

📂 Loading sample order from: sample_order.json
🔍 Validating order schema...
✅ Schema validation PASSED

============================================================
           ORDER CONFIRMATION
============================================================

📋 Order ID: ORDER-AB12CD
📅 Placed: December 08, 2025 at 04:30:45 PM
🏥 Pharmacy: ph001
⏱️  Estimated Delivery: 20 minutes

💊 Items Ordered:
------------------------------------------------------------
1. Paracetamol (SKU: SKU001)
   Quantity: 100 | Unit Price: ₹20 | Subtotal: ₹2000
2. Ibuprofen (SKU: SKU002)
   Quantity: 50 | Unit Price: ₹30 | Subtotal: ₹1500

------------------------------------------------------------
Subtotal:        ₹   3500.00
Delivery Fee:    ₹     15.00
==============================================
TOTAL:           ₹   3515.00
============================================================

---

🧪 Testing

Run All Tests

# Full test suite (unit + integration)
pytest

# Only integration tests (agent handoffs)
pytest tests/integration/

# Verbose output
pytest -v

Test Coverage

Integration Tests (Agent Handoffs):

• ✅ test_ingestion_to_imaging - File persistence & X-ray path handoff
• ✅ test_imaging_to_therapy - Condition enrichment (imaging → therapy)
• ✅ test_therapy_to_pharmacy - SKU matching (therapy → pharmacy)
• ✅ test_full_flow - End-to-end orchestration with order preview

Unit Tests:

• Individual agent behavior (age checks, allergy screening, geo matching, etc.)

---

🔒 Safety & Privacy

Safety Mechanisms

Feature	Implementation
Red-Flag Detection	"SpO2 < 92%", severe severity → immediate doctor escalation
Age Restrictions	Automatic rejection of medicines below age_min threshold
Allergy Screening	Checks contra_allergy_keywords for patient allergies
Drug Interactions	High/Moderate interactions flagged from interactions.csv
Doctor Escalation	Triggered when severity=severe, red flags present, or confidence < 50%
OTC Only	No prescription drugs recommended

Privacy Guarantees

• PII Masking: Names and phone numbers masked in logs (P***t, ########76)
• Anonymous Uploads: Files saved with non-identifying prefixes (e.g., xray_abc123.jpg, pneumonia_def456.jpg)
• No PHI Persistence: All data treated as temporary, anonymous artifacts
• Prominent Disclaimers: "Educational demo only, not medical advice" shown throughout UI

---

⚠️ Known Limitations

Technical Limitations

Area	Current Implementation	Production Requirement
X-ray Classifier	Filename-based heuristics (keywords: pneumonia, covid, normal)	Trained CNN (ResNet-50 on ChestX-ray14 dataset)
OCR	Mock placeholder text	AWS Textract / pytesseract
Geo Matching	Dummy Manhattan distance	Google Maps API / Haversine formula
Pharmacy APIs	Static CSV inventory	Real-time inventory webhooks
Payment	Mock confirmation only	Stripe / Razorpay integration
Authentication	None (single-user demo)	OAuth2 + RBAC
Database	Local CSV/JSON files	PostgreSQL + MongoDB

Scope Constraints

• OTC only: No prescription drugs or controlled substances
• Mock data: All pharmacies, doctors, stock levels are simulated
• Single condition focus: Optimized for respiratory conditions (pneumonia, COVID-19, normal)
• No longitudinal tracking: Each session is independent (no patient history)
• English only: No multi-language support

---

📊 Data Sources

Mock Data Files

All data files are located in Data/ and are used for demonstration purposes only.

File	Description	Sample Fields
medicines.csv	OTC formulary (8 drugs)	sku, drug_name, indication, age_min, contra_allergy_keywords
interactions.csv	Drug-drug interaction rules	drug_a, drug_b, level (High/Moderate/Low), note
pharmacies.json	Partner pharmacy locations (3 stores)	id, name, lat, lon, services, delivery_km
inventory.csv	Stock levels per pharmacy	pharmacy_id, sku, drug_name, price, qty
doctors.csv	Tele-consult roster (2 doctors)	doctor_id, name, specialty, tele_slots (ISO 8601)
zipcodes.csv	Pincode → geo mapping	pincode, lat, lon

Data Assumptions

• Inventory: Static stock levels (no real-time sync)
• ETA Calculation: Based on dummy distance (< 0.03 = 20 min, < 0.07 = 40 min, else 60 min)
• Doctor Availability: Fixed tele-slots (no booking system)
• Pricing: Mock prices in INR (Indian Rupees)

---

🛠️ Development

Adding New Agents

1. Create agent class in Agents/ (follow existing patterns)
2. Implement main method with clear JSON input/output contract
3. Add structured logging via get_logger(__name__)
4. Write unit tests in tests/unit/
5. Write integration tests for handoffs in tests/integration/
6. Update orchestrator to call new agent in flow

Adding New Data

1. Place CSV/JSON files in Data/
2. Add loader function in Utils/data_loader.py
3. Update relevant agent to consume new data
4. Add test fixtures in tests/

---

📦 Deployment

Streamlit Community Cloud

This app is deployed at: https://multi-ai-agent-doctor-by-vidisha.streamlit.app/

Deployment steps:

1. Push code to GitHub
2. Connect repo to Streamlit Community Cloud
3. Set Python version to 3.10+
4. Deploy from app.py

Alternative Platforms

• Render: Free tier, connect GitHub repo
• Heroku: Use Procfile with web: streamlit run app.py --server.port=$PORT
• AWS EC2: Docker container with Streamlit

---

🎓 Educational Context

This project was built as a proof-of-concept for a multi-agent healthcare system to demonstrate:

• Modular agent architecture with clear separation of concerns
• Safe AI triage with human-in-the-loop escalation
• Privacy-first design (PII masking, anonymous uploads)
• Integration testing for agent handoffs
• Observable, debuggable system design (timeline, JSON logs)
• Streamlit UI for rapid prototyping

Key Learning Outcomes:

• Multi-agent orchestration patterns
• Healthcare data handling (safety checks, red flags)
• CSV/JSON data modeling
• Python testing (pytest, fixtures, integration tests)
• Streamlit UI development
• Deployment to cloud platforms

---

📝 Citation

If you reference this project, please cite:

Multi-Agent Healthcare Assistant POC
Author: Vidisha Arvind
Year: 2025
GitHub: https://github.com/Vibhuarvind/Multi_AI_Agent_Medical_Assistant
Demo: https://multi-ai-agent-doctor-by-vidisha.streamlit.app/

---

📄 License

Educational project - not for commercial use.

This is a portfolio/demonstration project. No warranties or guarantees are provided. Use at your own risk.

---

🤝 Contributing

This is a demonstration project, but feedback and suggestions are welcome!

---

📞 Contact

For questions about this project:

GitHub Issues: Open an issue

---

🙏 Acknowledgments

• Mock data inspired by real OTC formularies and pharmacy networks
• ChestX-ray dataset references for future ML integration
• Streamlit community for rapid prototyping tools

---

Built with ❤️ for safe, intelligent healthcare automation
